Product DescriptionMain Features1. The shearing/cutting unit adopts double colum

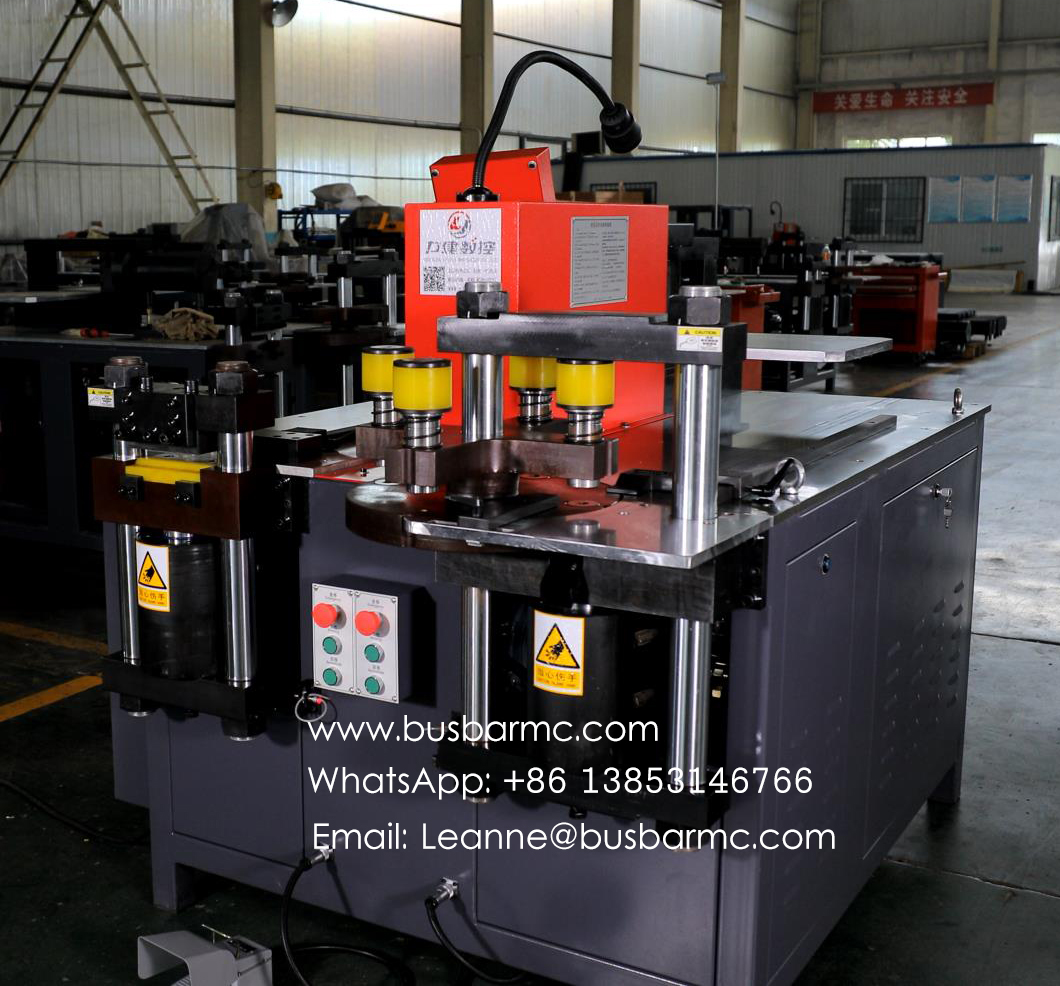

The LT-303U-3-C is the CNC busbar processing machine for serial production, where repeatability between parts matters more than maximum capacity. It combines punching, shearing and bending in one station at a nominal force of 300 kN, processing copper and aluminium bars up to 12 mm × 160 mm. The shearing unit uses double-column shear dies for a clean, burr-free cut, and the punching unit uses a six-position turret that keeps punch and die aligned, extending tool life. Bending uses a closed structure, which raises batch repeatability. Bending accuracy is ±1° with ±0.5° repeatability, driven by 3 × 4 kW. Certifications: ISO9001:2000 and CE.
Values per the model datasheet. Each paragraph is self-contained and states the test condition, the value and the comparison baseline.
Test condition: serial production of 12 mm × 160 mm busbars on the LT-303U-3-C. Value: ±1° bending accuracy with ±0.5° repeatability. Comparison baseline: an open-structure bending machine with a manual stop, whose angular spread grows within the batch. Effect: every part comes off the line identical, with no manual selection.
Test condition: cutting a 12 mm thick, 160 mm wide bar with double-column shear dies. Value: a cut stated to be clean and burr-free across the full 160 mm width. Comparison baseline: abrasive-disc cutting, which leaves a burr and needs a finishing operation. Effect: the bar goes to assembly with no intermediate grinding step.
Test condition: punching from Φ4.3 to Φ25 mm with a six-position turret. Value: permanent alignment between punch and die over the life of the tool. Comparison baseline: a single-position die holder, which needs manual realignment after every change. Effect: die consumption and tool-change downtime both fall.
Test condition: deployment in a factory that requires quality traceability. Value: ISO9001:2000 and CE certification, with 300 kN of force, 3 × 4 kW of power and 1,320 kg of weight. Comparison baseline: equipment with no declared international certification. Effect: it passes supplier audits from electrical assemblers and utilities.
It is a complete 3-in-1 solution performing punching, cutting and bending on copper and aluminium busbars, used for transformers and LV/MV panels.
With its six-station turret it punches holes from Φ4.3 mm up to Φ25 mm in bars up to 12 mm thick.
Yes. It uses CNC control with ±0.5° repeatability, which keeps parts identical on the assembly line.
Product Description
Main Features
1. The shearing/cutting unit adopts double column shearing dies.
2. The punching unit is an integral six-mode turnplate, which ensure the upper and lower molds are absolutely in the center.
3. The bending unit adopts a closed bending structure, which makes it more uniform during processing horizontal bending and embossing, and improves the repeat positioning accuracy in mass production.
4. Different molds or tools can be installed according to user requirements to complete special shape processing.
Product Details
1.CNC TOUCH SCREEN
2.INDUSTRIAL LAMP
3.PUNCHING TURRET UNIT
4.PUNCHING POSITIONING RULER
5.CYLINDER 6.LINE SWITCH
7.FOOT SWITCH 8.CUTTING UNIT
9.ELECTRICAL BOX
10.TOOL BOX
11.BENDING UNIT
12.CUTTING POSITIONING RULER
Processing Samples
BMC-303U-3-C is a three functions busbar processing machine.
Function one: punch
For round hole punch, oblong hole punch.
Function two: cut
Function three: bend.
It can do vertical bending, flat bending, U-bending, and Z-bending by changing the molds.
Other functions
Our Factory
Our Service
Our after-sales service engineers will also have return visit to you on a regular basis to listen to your valuable opinions and continuously improve product quality.
Package & Delivery
We use waterproof plastic film wrapped inside and wooden cases outside.
Our Clients
Our Certifications
ISO9001:2000/CE
| Items | Model |
| LT-303U-3-C | |
| Nominal force (kn) | 300 |
Punching dia. range (mm) | ф4.3～ф25 |
Max. thickness (mm) | 12 |
Max. width (mm) | 160 |
| Max. shearing thickness (mm) | 12 |
| Max. shearing width (mm) | 160 |
| Max. horizontal bending width (mm) | 160 |
Max. Horizontal bendind thickness (mm) | 12 |
| Max. vertical bending size (mm) | 10×100 |
Power (kw) | 3×4KW |
| Bending precision (degree) | ±1° |
| Repeat bending precision (degree) | ±0.5° |
First table size (mm) | 1650×1050 |
Second table size (mm) | no |
| Outside dimension (mm) | 1720×1220×1240 |
| Container size（mm） | 1800×1300×1450 |
| Total weight（kg） | 1320KG |
